$49.99 USD

Shipping calculated at checkout.

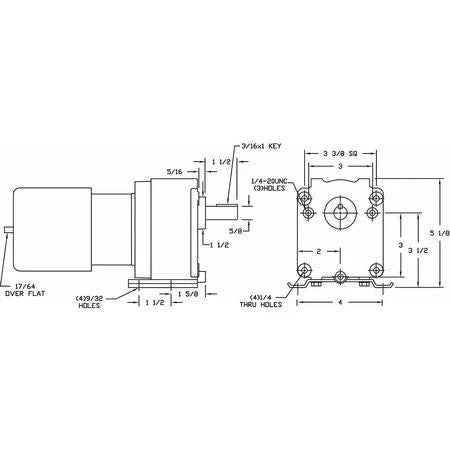

8.375 in Body Length; Permanent Heavy Duty Gear Oil Lubrication; Heavy Duty Needle Roller and Thrust Balls on Case Bearings; Ball on Motor Bearings; Adaptable to 5X400 Brake; USA Country of Origin; 1.5 A Current; Die Cast Aluminum Enclosure Material; 60 Hz Frequency; 200 in-lb Full-Load Torque; Die Cast Aluminum Gear Case Material; Steel Gear Material; 265:1 Gear Ratio; 15 RPM Maximum Speed; 0 RPM Minimum Speed; Shaded Pole Motor Type; Totally Enclosed Fan-Cooled NEMA Enclosure Type; Base/Face Mounting Location; All Angle Mounting Position; 6.1 RPM Nameplate RPM; 175 lb Overhung Load; Single Phase; Lip Type on Input and Output Shaft Seals; AC Power Type; Keyed Shaft Design; 3.5 in Shaft-to-Base Distance; None Thermal Protection; 115V AC Voltage; 5.125 in Overall Height; 1.187 in Shaft Length; 0.625 in Shaft Diameter; 40 ° C Maximum Ambient Temperature; 0.28125 in Mounting Hole Diameter; 0.025 hp Input Power; Helical/Spur Gear Type; 4 Number of Mounting Holes; CW Shaft Rotation

Decrease quantity Increase quantity

Add to cart
